Datong Art Museum Building, China Culture Project Design, Architect, Foster + Partners

Datong Art Museum, China : Shanxi Province Building

Chinese Museum of the 21st Century design by Foster + Partners Architects

5 Jan 2022
Datong Art Museum, Shanxi Province, China
Design: Foster + Partners
Datong Art Museum Building, China by Foster + Partners
photo : Yang Chaoying
Datong Art Museum Building
Datong Art Museum – an important new cultural destination in China – has opened to the public.

Previously on e-architect:

26 Apr 2012

Design: Foster + Partners

New museum under construction in Datong, China

Construction is underway at Datong Art Museum – China’s ‘Museum of the 21st Century’. The museum will open in 2013 to represent China in the ‘Beyond the Building’ Basel Art international tour.

Datong Art Museum building, China culture project design
image : Foster + Partners

Datong Art Museum

The 32,000-square-metre venue is one of four major new buildings within Datong New City’s cultural plaza. Its centrepiece is the Grand Gallery, a heroically scaled, top-lit exhibition space measuring 37 metres high and spanning almost 80 metres, in which artists will be commissioned to create large-scale works of art.

Externally, the building’s form is conceived as an erupted landscape. The entire museum is sunk into the ground with only the peaks of the roof visible at ground level. The roof is clad in earth-toned Corten steel, which will weather naturally over time. The building relates in scale to the three other cultural buildings in the group, balancing the overall composition of the masterplan while maximising the internal volume of the Grand Gallery.

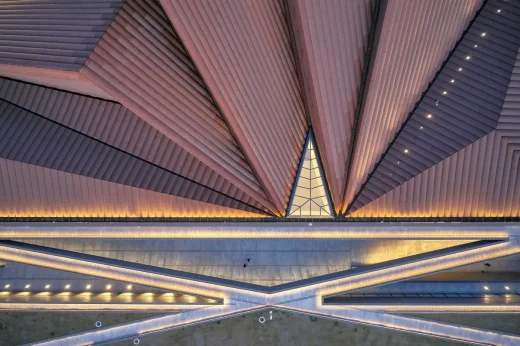

The roof is composed of four interconnected pyramids, which increase in height and fan outwards towards the four corners of the cultural plaza. A clerestory between each volume creates a dynamic play of light and shade internally, while illuminating the building from within to create a beacon for the new cultural quarter at night. Visitors approach via a gentle ramp and stair, which are integrated with the sunken plaza to create an informal amphitheatre. The arrival sequence culminates in a dramatic overview of the Grand Gallery.

Datong Art Museum building Shanxi Province design
image : Foster + Partners

The interior is designed to be highly flexible to accommodate a changing programme of displays. The Grand Gallery is arranged over a single level, which can be subdivided to create individual exhibition spaces, and the services are fully integrated with the structure. The children’s gallery, group entrance lobby, café, restaurant and support spaces are arranged around sunken courtyards to draw in daylight.

The building’s efficient passive design responds to Datong’s climate. High-level skylights take advantage of the building’s north and north-west orientation, using natural light to aid orientation while minimising solar gain and ensuring the optimum environment for the works of art. A high-performance enclosure further reduces energy use. The roof, which accounts for 70 per cent of the exposed surface area, is insulated to twice building code requirements and, with just 10 per cent glazing, maintenance requirements are also minimised.

Luke Fox, a senior partner at Foster + Partners: “We are delighted to reveal designs for the new museum and look forward to working with the city to take the project to the next stage. When complete, Datong’s new quarter will be the centre of the city’s cultural life, with the new museum as its ‘urban room’ – a dynamic space, open to everyone to meet and enjoy its different displays and activities.”

Datong Art Museum images / information from Foster + Partners

Foster + Partners, London, UK

Location: Datong, China
