CUF Descobertas Hospital Lisbon, Portuguese Healthcare Building Development, Architecture Photos

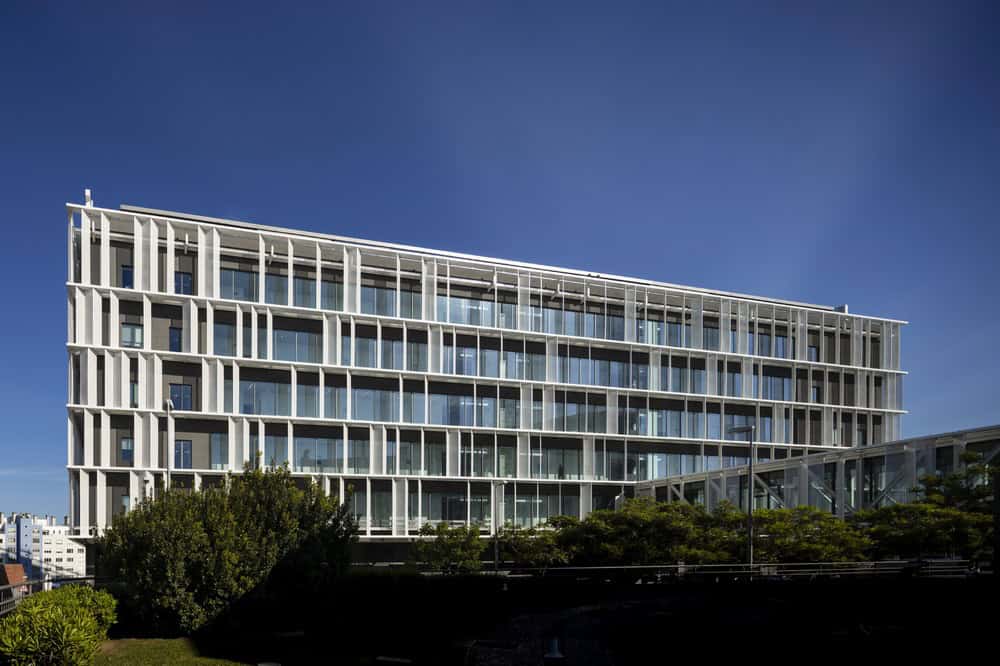

CUF Descobertas Hospital in Lisbon

New Health Building Development in Portugal design by IDOM

7 May 2019

Architects: IDOM

Location: Lisbon, Portugal

CUF Descobertas Hospital in Lisbon

Photos by FG+SG

CUF Descobertas Hospital

The construction of this new building was the consequence of the need to extend the CUF Descobertas Hospital, property of Portugal’s main private healthcare group – Jose de Mello Saude – and it works exclusively as an out-patient’s clinic.

CUF Descobertas Hospital in Lisbon

Located in the Parque Das Nacoes in Lisbon, the original building, designed at the end of the 90s, marked the beginning of a new era in the country’s hospital design, introducing very innovative criteria both in its functional distribution and, particularly, the promotion of a new hospital image in which healthcare premises would be made more comfortable and humane to patients and personnel.

CUF Descobertas Hospital in Lisbon

The extension building, inaugurated at the end of 2018, had to respond to a complex set of programmatic and urbanistic requirements. More important however was the fact that it was being introduced in its essence, as a powerful “external device”, full of functional availability, stemming from its base like a cell that duplicates, not to reproduce, but rather to become whole, making the entire infrastructure evolve towards a “hospital campus” idea.

CUF Descobertas Hospital in Lisbon

The formal character of the new Building 2 of the CUF Descobertas Hospital would have to be in line with this sensitive balance. It had to guarantee, on the one hand, that the main building, built in the 90s, would be identified as a national referential social security and technological centre whilst at the same time, on the other, stating the building’s architectural contemporaneity and the uniqueness of its exclusive out-patient usage, opening up to the city one of the main access doors of the hospital complex.

CUF Descobertas Hospital in Lisbon CUF Descobertas Hospital in Lisbon

With simple and regular shapes, determined by the planning conditions of the plot, the new building intends to express its own identity, sober and compact, based on the direct link between the building and its purpose and the rational use of materials, aiming for a formal equilibrium between past and present.

CUF Descobertas Hospital in Lisbon

Just like the main building’s project back in its day, the design of this new block includes truly revolutionary aspects, representing radical changes in the concepts of hospital comfort, sustainability and energy efficiency in this type of building.

CUF Descobertas Hospital in Lisbon

The building was conceived in a multidisciplinary fashion by IDOM architects and engineers in order to achieve the highest possible functional quality and high environmental comfort standards while at the same time ensuring it could behave, during its exploitation, as a nZEB – nearly Zero Energy Building – which is to say, that it would consume little more energy than what it could generate through renewable energy sources, considered over a whole year period.

CUF Descobertas Hospital in Lisbon

Faced with such a challenge and aware that hospitals are big energy consumers, going beyond known and tested solutions was in order, implementing strategies and solutions never before considered in hospital designing.

new health building in Portugal design by IDOM

To a double façade made of perforated metal plate, designed with advanced thermal and lighting simulation programs, in close collaboration with the architecture, a set of HVAC passive and semi-passive systems was added. They include using the building’s thermal inertia as a fundamental part of the HVAC system that derives from the thermal activation of the building’s structural slabs (TABS).

Health building in Portugal for private healthcare group Jose de Mello Saude

The innovative design strategies applied to the design criteria of this hospital have definiteively contributed to the very positive results in terms of comfort and energy efficiency, without disregarding the architectural image which was to be attractive and referential within the built-up surroundings.

Lisbon building for private healthcare group Jose de Mello Saude CUF Descobertas Hospital in Lisbon

CUF Descobertas Hospital, Lisbon – Building Information

Client: IMO HEALTH – Investimentos Imobiliários, Unipessoal Lda.
Location: R. Mário Botas, 1998-018 Lisboa, Portugal
Area: 23.010 sqm

Studio
IDOM
Head Architect
Rui Maia
Architects
Rui Maia, Jorge Matias, João Santos, Javier Díaz, Laura Valcarcel, Magdalena Ostornol, María del Pino, Pablo Viña

CUF Descobertas Hospital in Lisbon

Costs
Carmen Camarno

Structures
Carlos Castañon, Pedro Viegas, David García, Romina González

Hydralic Building Services
António Cardoso Gaspar, Susana Maduro

Fire SafetyArchitects: Belén Herrero

HVAC
Ramón Gutierrez, José Sereno, Isaac Lorenzo, Javier Sánchez, Antonio Mendoza

Energy Efficiency And Sustainability:
Ramón Gutierrez, Javier Martín

Energy Performance Certificate
Ana Rita Henriques

Electricity Building Services
Luís Barra, Joao Parreira

Technical Management
Luís Barra

Voice And Data/telecommunications:
Asís Hernando, Inés Horta

Special Building Services (Medicinal Gases, Pneumatic Tube Transport)
Julio César García, Carmén Vieira

Acoustics
Mario Torices, Odete Domingues

Office Clerks
Vanesa Marrero Castro, Isabel Cantero Murillo

Construction Stage Technical Coordination
António Cardoso Gaspar, Carmén Vieira, António Jorge Matias, Belén Herrero, Pedro Viegas, Luís Barra, Inês Cardoso, José Sereno

Interior Design
P-06 ATELIER

Computer Graphics
Manuel Leira Carmena

Year
2016 (PROJECT) 2018 (CONSTRUCTION)

CUF Descobertas Hospital in Lisbon

Photography FG+SG

CUF Descobertas Hospital in Lisbon images / information received 070519
