Kattegat House in Southern Sweden

10 Nov 2020

Kattegat House

Design: Strom Architects

Location: Southern Sweden

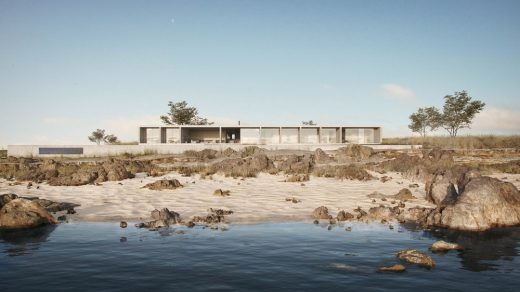

Kattegat House is a private house on the West coast of Southern of Sweden, not far from where Magnus Ström grew up. It is an extremely exposed site, but with stunning views and the personal connection with Magnus, it was an especially interesting challenge.

Kattegat House Southern Sweden

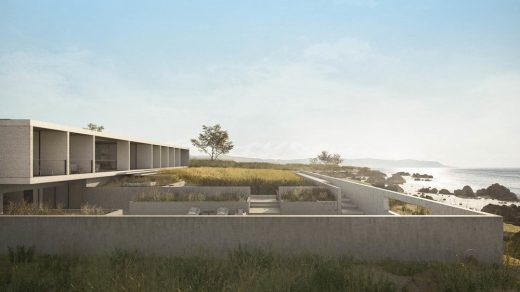

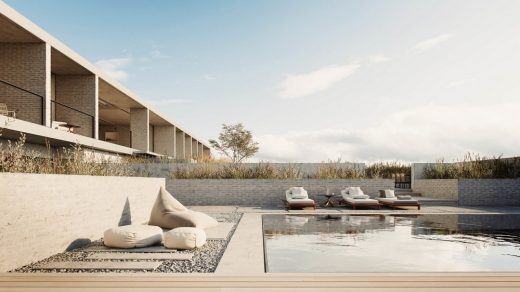

The site slopes gently towards the sea, but is also exposed to a public footpath and views into the site. Strom Architects created a stone wall to define the ‘habitable’ zone, and this creates a physical boundary providing privacy. On the inside of the wall, they terraced the ‘habitable’ zone thus creating a hierarchy of plateaus on which different functions of the house were placed. The outdoor pool is positioned right inside the wall in an area completely protected from external views, but also from westerly winds.

Kattegat House Southern Sweden

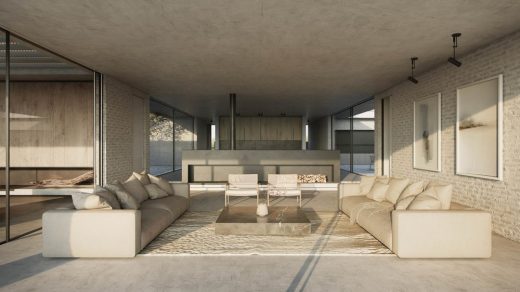

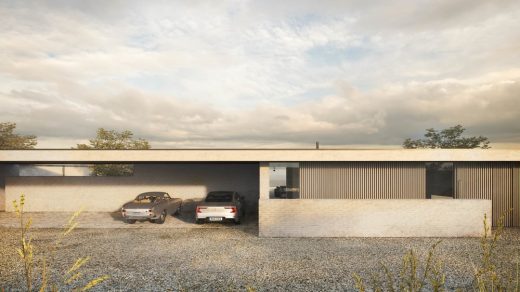

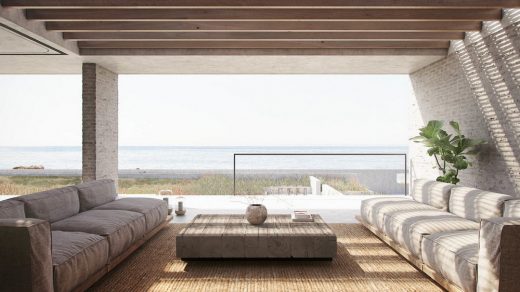

On the top plateau, we place a service-building containing entrance, garage and store. The kitchen, dining and living areas are placed at 90 degrees to the terraces with a strong direction towards the sea.

Kattegat House Southern Sweden

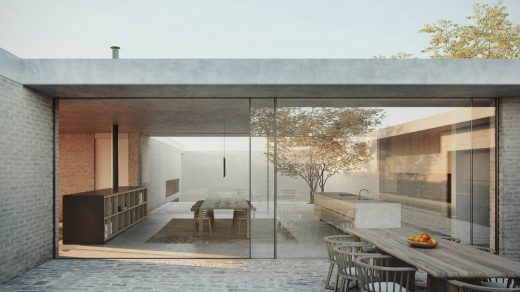

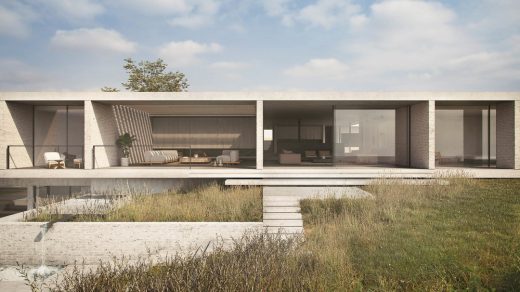

On the lower plateau, Strom Architects place a private bedroom wing and guest wing respectively on either side of the living room. These wings then enclose two courtyards: one for sculpture, and one for outdoor living with external kitchen. All bedrooms, as well as living areas, have a sea view.

Kattegat House Southern Sweden

Kattegat House Southern Sweden

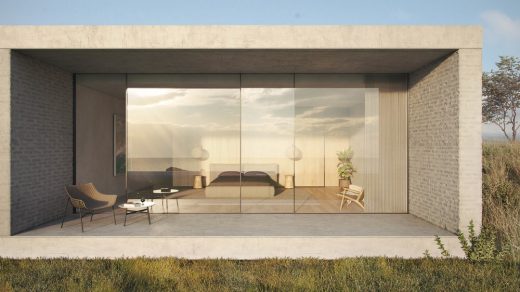

Finally the architects create a deep facade with fins. These fins create a zone that allows a private terrace outside each bedroom, but they also provide protection from views into the house when viewed obliquely. The set back of the glazing allows the roof overhang to provide solar shading in the summer months. Recessed steel shutters can be closed when the winter storms are their worst.

Kattegat House Southern Sweden

Kattegat House Southern Sweden

The house is designed to be built out of a concrete frame, and walls and fins are of Petersen Kolumba bricks. The language of concrete and brick is showing an ‘honesty of construction’ while at the same time providing an extremely robust building fabric that will weather well in this exposed location.

Kattegat House Southern Sweden

Key products
Concrete, Petersen Kolumba Bricks.

Challenges
The site, although with stunning views, posed a number of challenges for us. A public footpath that allowed views into the site and the very exposed nature of the coastline required a clever and creative approach to the design.

Brief
The brief was to design a family house, but that would allow children and grandchildren to use this as an extended home.

Kattegat House Southern Sweden

Sustainability features
The house being in situated in Sweden is designed to have very high levels of insulation, as well as being very airtight reducing the heating need.
A groundsource heat pump (boreholes) provides heating.

Kattegat House Southern Sweden

High thermal mass and the deep facade reduces overheating in summer months. Low winter sun offers passive solar heat gain. Comfort cooling on those few hot days, is provide by utilising the boreholes and circulation cooling.

PVs on the roof help power the GSHP. Batteries will also be used to store electricity.

Kattegat House Southern Sweden

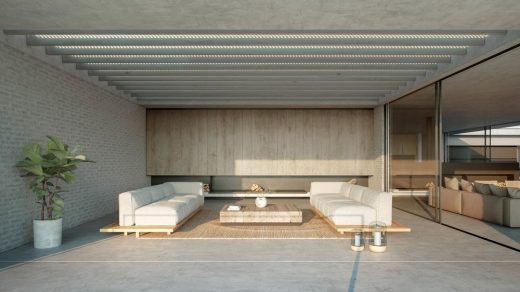

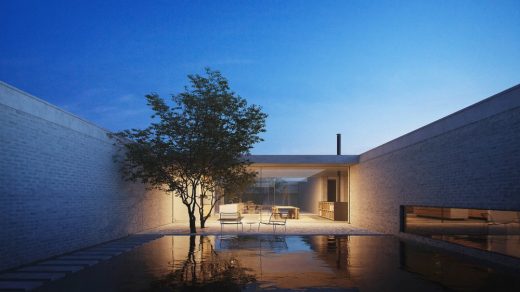

The architects designed a house with two courtyards. These allow outdoor living, even when the westerly winds are strong.

Materials such as brick and concrete were chosen as the house needed to be robust and withstand the elements.

Finally, a wall defines the “garden” and creates privacy and protection from the elements.

Kattegat House Southern Sweden

Kattegat House on the coast of Southern Sweden – Building Information

Architects: Strom Architects

Start date: t.b.c.
Project size: 700 sqm
Building levels: 1

Kattegat House Southern Sweden

Images: nu.ma

Kattegat House, Southern Sweden images / information received 101120
