Sea Glass House on the Isle of Wight, UK

Contemporary Southern English Property design by The Manser Practice Architects

post updated 6 September 2024

Location: The Isle of Wight, southern England, United Kingdom

Architect: The Manser Practice

Sea Glass House on the Isle of Wight, England

The Clients’ brief was for their weekend and holiday house, a compact 1960’s bungalow, to be enlarged, giving more living accommodation and enhancing the views of the sea to the north and west. Maintaining the private/secret nature of the site was also a requirement.

Sea Glass House Isle of Wight

14 Oct 2014

Sea Glass House

An initial proposal to simply add a glass pavilion living room to the existing house appeared to fulfil the brief. Keeping the house single storey kept the building low enough not to have a view of nearby houses but adding the new space to the north of the existing house located the main living space in a position with a more commanding view over the woods below to the Solent beyond.

Sea Glass House Isle of Wight

As the design developed however it became obvious that the size and standard of the new extension would only serve to exaggerate the cramped and substandard nature of the existing house. A decision was taken in favour of wholesale redevelopment; maintaining the concept of the initial proposal but ensuring that the completed project had a coherence and consistency of quality.

Sea Glass House Isle of Wight

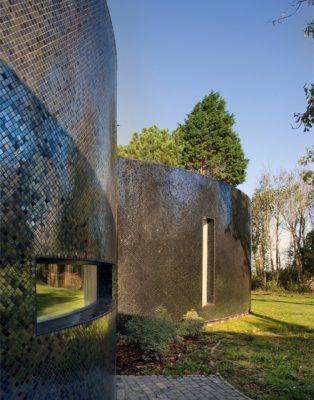

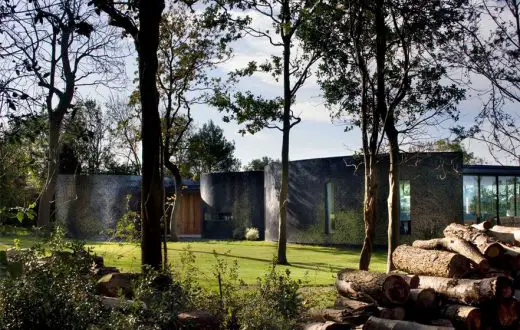

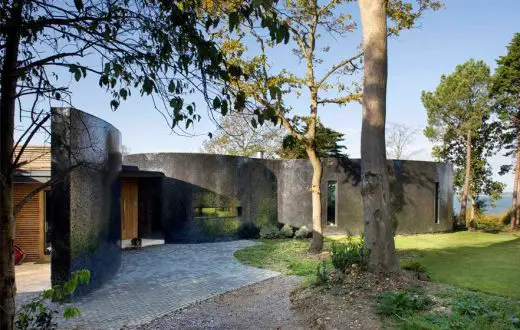

The house is approached from a generally suburban and unremarkable road down gravel drive through a wood. The initial view of the house is deliberately unclear. A long sinuous reflective black wall sitting amongst the trees conceals the presence of the house and beyond. Views of the sea are also only hinted at with glimpses.

Sea Glass House Isle of Wight

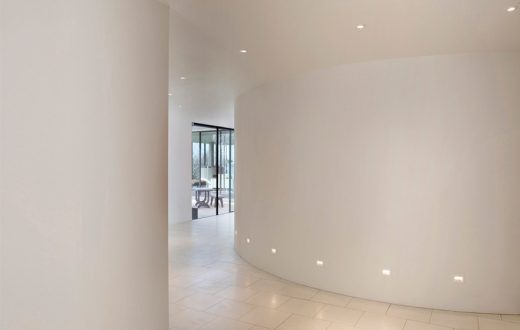

On entering the house through a huge rough sawn timber door the visitor is lead along a broad sweeping curved corridor down which the main living space, the internal and external living areas and the stunning views beyond slowly become apparent.

Sea Glass House Isle of Wight

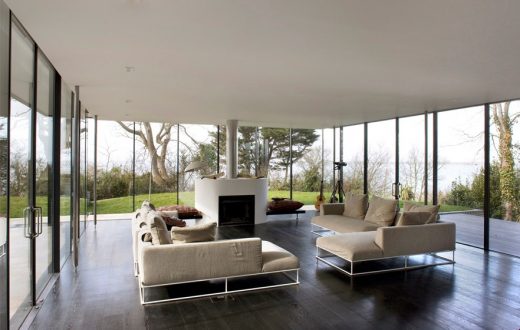

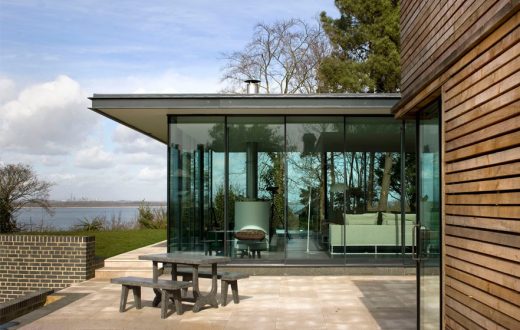

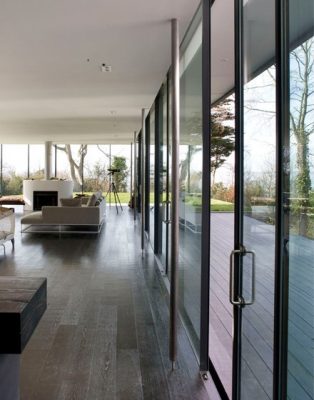

The utter and apparently almost structureless, transparency of the living area is offset by the timber clad density of the bedroom block the two sections being held together by the black screen wall running north south on the east side of the house. Bedrooms generally have corner locations with micro views within the property but the main living space with terraces both to the north and south has long views to the north and west.

Sea Glass House Isle of Wight Sea Glass House Isle of Wight

Rebuilding rather than extending allowed the whole house to be designed in a more sustainable level than the existing property.

Sea Glass House Isle of Wight

The building is heated using a ground source heat pump running off a series of 40m bore holes. The heat pump also provides the hot water and heating to the swimming pool and in summer provides cooling to the floors: – replenishing the borehole in the process.

Sea Glass House Isle of Wight

Rainwater is harvested for flushing WCs and for external taps. Solar heating for hot water was considered but rejected as there were operational problems on a property which in only used intermittently. Similarly a wind turbine was rejected for a number of reasons, including planning, wind profile, and pay back time.

Sea Glass House Isle of Wight

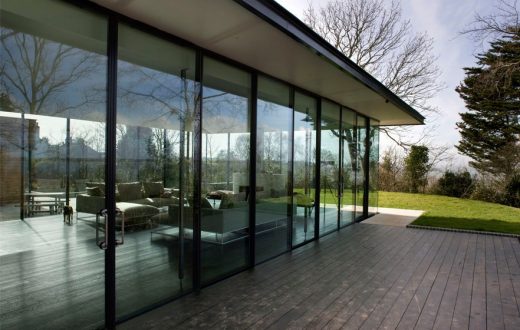

The main bedroom block and all external walls are constructed using 280mm thick lightweight clay honeycombe ‘Zeigler’ blocks giving very high levels of insulation whilst the glazed pavilion has deep overhangs ensuring that solar gain is used to best advantage during winter months but avoided during the summer.

Sea Glass House Isle of Wight

The dark living room floor also absorbs solar gain reducing the load in the underfloor heating. The project took 14 months on site – original contract period 11 months and unfinalised construction cost, including pool and external works which were added to the contract are in the region of £675,000.

Sea Glass House Isle of Wight

Sea Glass House Isle of Wight – Property Information

Architects: The Manser Practice
General Contractor: John Peck Construction Ltd
Structural Engineering: Elliot Wood Partnership LLP
Landscaping: John Brookes Landscape Designer

Sea Glass House Isle of Wight

Sea Glass House images / information received from The Manser Practice
